Parkray Aspect 4 | Corner Stove Installation

We were contacted to do a survey at a property with a newly built extension to the back of the house.

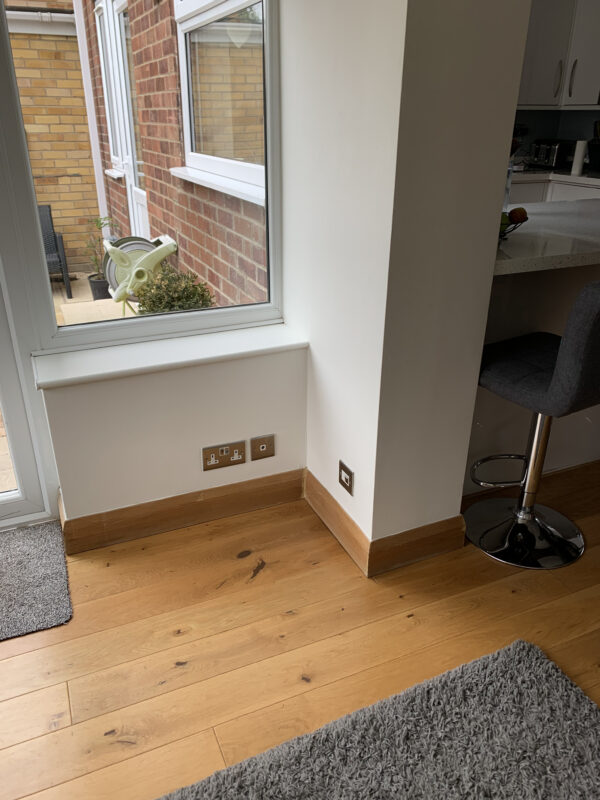

Our customers wanted a medium-sized woodburning stove to be installed in a corner between the new and the old part of the house.

They were concerned with the lack of a chimney, however, we assured them that the stove could be installed using a twin-wall chimney system–  an incredible solution for all spaces without access to a traditional chimney stack. Taking all the requirements into consideration, we suggested the Parkray Aspect 4 Eco.

The Parkray Aspect 4 Eco is a wood-burning stove that is designed to be both efficient and environmentally friendly.

It has a sleek and modern design, with a large viewing window that allows you to enjoy the flames.

The stove is made from high-quality materials and is built to last, it features a powerful airwash system that keeps the glass clean, so you can always enjoy a clear view of the fire.

The Aspect 4 Eco has a high-efficiency rating of over 80%, which means that it can heat your home effectively while using less fuel.

INSTALLATIONS

The installation day began with placing temporary protection in all areas where work was to be carried out.

Following that, the stove was placed on a teardrop matt granite-style hearth and a black Schiedel Twin Wall Chimney System was installed to the top of the stove vertically through the ceiling and roof covering.

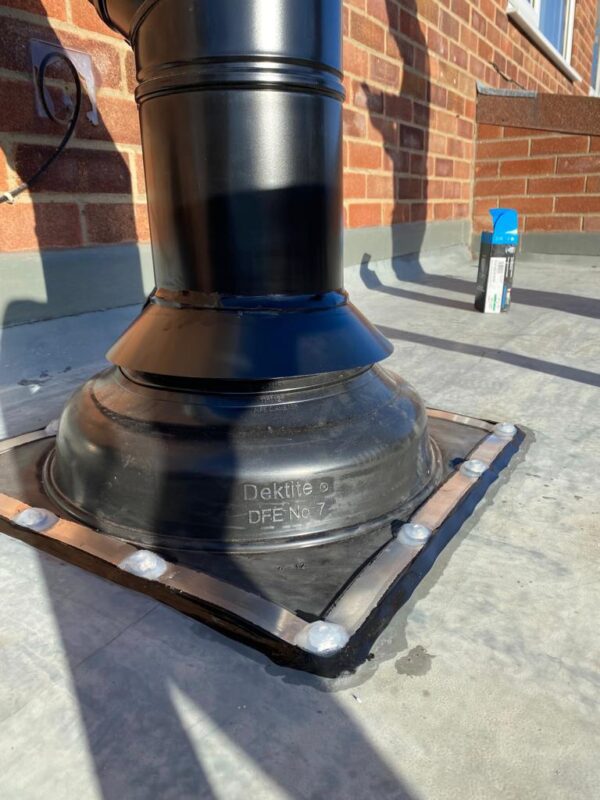

Next, a suitable lead flashing kit was installed together with a storm collar; the chimney system was completed with an anti-down draft cowl.

Once all debris was disposed of and the area where the stove was installed was cleaned, our HETAS registered engineers performed a smoke test using Firestarter. The smoke test ensures that there is an adequate degree of draw and that all connections are sealed. Finally, in accordance with building regulations, a CO/ Carbon Monoxide Alarm and a chimney notice plate were installed.

Would you like to explore your wood-burning options? Submit our free home survey request or contact us for more information.
