Stuv 16-in 16/78 Inset
The Stûv 16-in 16/78 Inset Stove is the largest model in the 16-in range, designed for expansive rooms with its wide firebox, panoramic flame view, and powerful yet efficient clean-burn performance.
£3,686.40 inc. VAT
*Pay safely with credit card.
Enjoy free delivery on the Stuv 16-in 16/78 Inset, straight to your door anywhere in the UK. Order today and we’ll handle the shipping.
Order Stuv 16-in 16/78 Inset
Enjoy free delivery on the Stuv 16-in 16/78 Inset, straight to your door anywhere in the UK. Order today and we’ll handle the shipping.
Description
The Stûv 16-in 16/78 Inset Stove is a premium wide-format model, offering the most dramatic flame presentation in the 16-in series. Its expansive glass front and extra-wide firebox create a bold architectural feature while delivering the reliable heating performance expected from a stuv wood burning stove.
Accommodating logs up to 60 cm in length, the 16/78 is built for sustained burning, fewer reloads, and maximum visual impact. Installed flush into a wall or fireplace recess, it blends effortlessly into modern interiors, giving the appearance of a built-in stuv fireplace with all the efficiency and engineering precision of the Stûv brand.
🔥 Standout Features & Benefits
-
Largest Inset Model — wide firebox accepts logs up to 60 cm for extended burn times.
-
Panoramic Viewing Window — extra-wide glass shows off the full drama of the flames.
-
Inset Installation — fits seamlessly into walls or bespoke fireplace designs.
-
Clean-Burn System — triple-airflow combustion ensures high efficiency and low emissions.
-

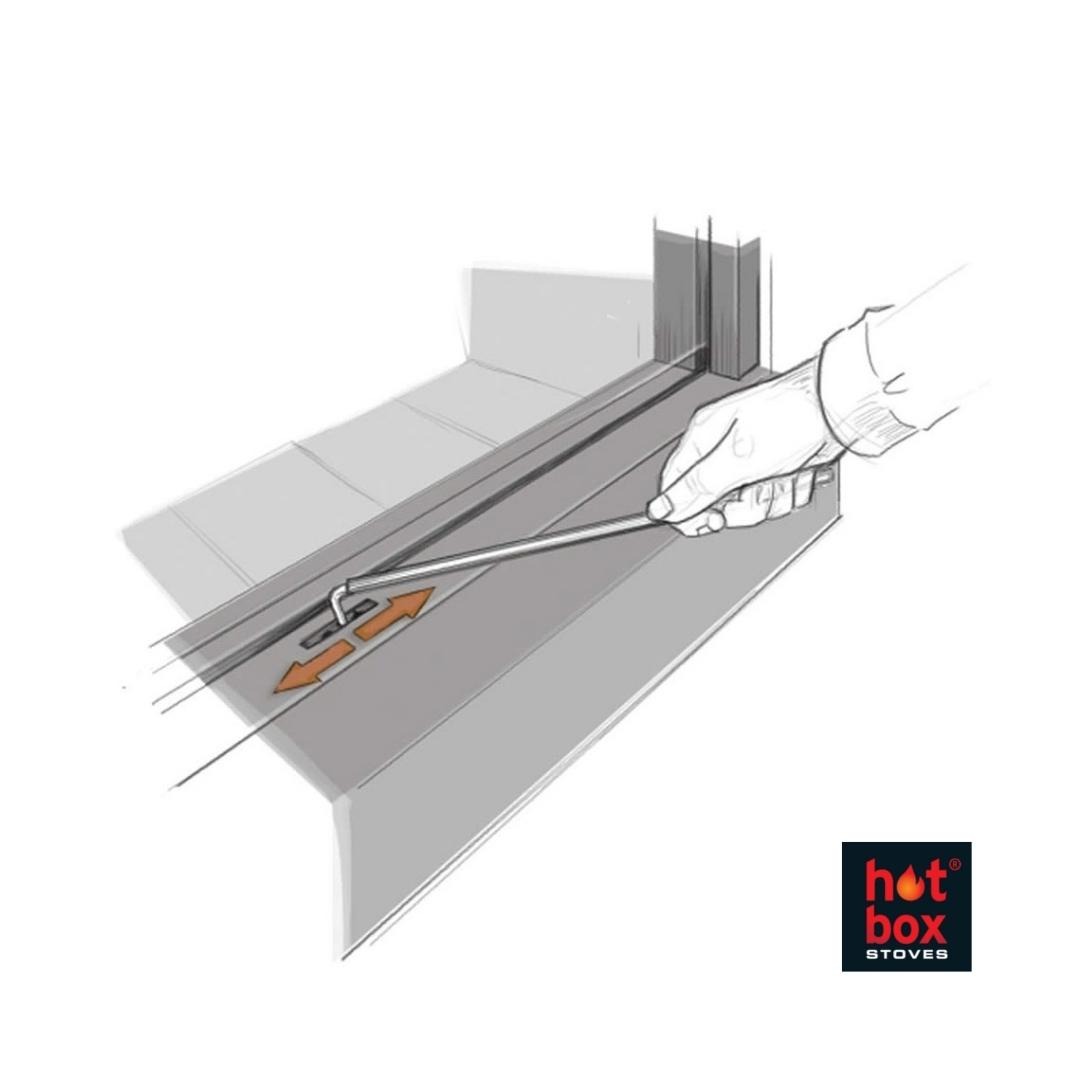

Simple Operation — one lever controls all airflow for ease of use.
-
Architectural Aesthetics — flush installation with optional frame styles for a tailored finish.
-
Powerful Heating — designed to comfortably heat larger spaces and open-plan layouts.
| Spec | Value |
|---|---|
| Maximum log length | 60 cm (≈ 23.6 in) |
| Nominal Output | ~10–12 kW (≈ 34,000–41,000 BTU/h) |
| Maximum Output | ~17–25 kW (depending on setup) |
| Efficiency | ~66–70 % |
| Particle Emissions | ~3.1 g/h |
| Heating Area Coverage | Up to 200 m² (≈ 2,100 ft²) |
| Firebox Volume | ~2.2 ft³ |
| Glass Viewing Size (W × H) | ≈ 650 × 420 mm |

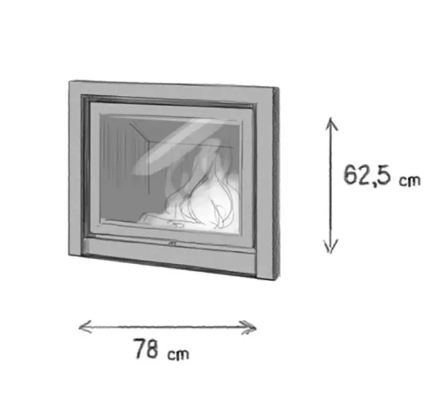

| Unit Dimensions (W × H × D) | ≈ 780 × 620 × 460 mm |
| Weight | ≈ 135 kg |
| Outside Air Duct | Ø 100 mm |
🛠 Installation & Use Notes
-
Requires a prepared recess with correct clearances and ventilation.
-
Operates with the door closed to maintain combustion efficiency and safety.
-
Supports outside air connection, making it ideal for airtight modern builds.
-
Simple to operate via a single control lever managing all combustion air.
-
Works best with seasoned hardwood logs for maximum heat and clean flame quality.
✅ Summary
The Stûv 16-in 16/78 Inset Stove is the widest, most powerful inset in the range — a perfect choice for larger rooms and open-plan designs. Combining panoramic flame views with clean-burning technology, it brings both visual drama and reliable heating performance to any home.
| Weight | 135 kg |
|---|---|
| Dimensions | 78 × 62 × 46 cm |
Be the first to review “Stuv 16-in 16/78 Inset”
You must be logged in to post a review.
Stuv 16-in 16/78 Inset Technical Details
Every Stûv stove installed by Hot Box Stoves is fitted to the highest industry standards, ensuring optimal performance, safety, and efficiency. Our installation team is fully trained in Stûv’s technical requirements, including correct flue sizing, ventilation provision, and heat output calculations. We use only manufacturer-approved components and follow HETAS regulations to guarantee compliance. Technical specifications such as dimensions, kW output, fuel type compatibility, and flue configuration are provided with every quotation to ensure your chosen model is perfectly matched to your property.
Height 46 CM
Width 62 CM
Depth 78 CM
Weight 135 KG
Warranty Details
Every Stûv stove is backed by the official 5/3/3 Guarantee, giving you complete peace of mind.
5 years on the stove body
3 years on original electrical components
3 years on other components (base grate, door mechanism, hinges etc)
